| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320E |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| Name: | Concrete Floor Grinding Machine | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, |
|---|---|---|---|
| UNIQUE SELLING POINT: | High Operating Efficiency | Dust Collection: | Yes |
| Rated Voltage*current: | 380V*13A | Color: | Orange,White,Red |
| Size: | 1200*400*896 | ||
| High Light: | 50hz grinder machine for concrete,60hz grinder machine for concrete,4hp grinding machine concrete |
||

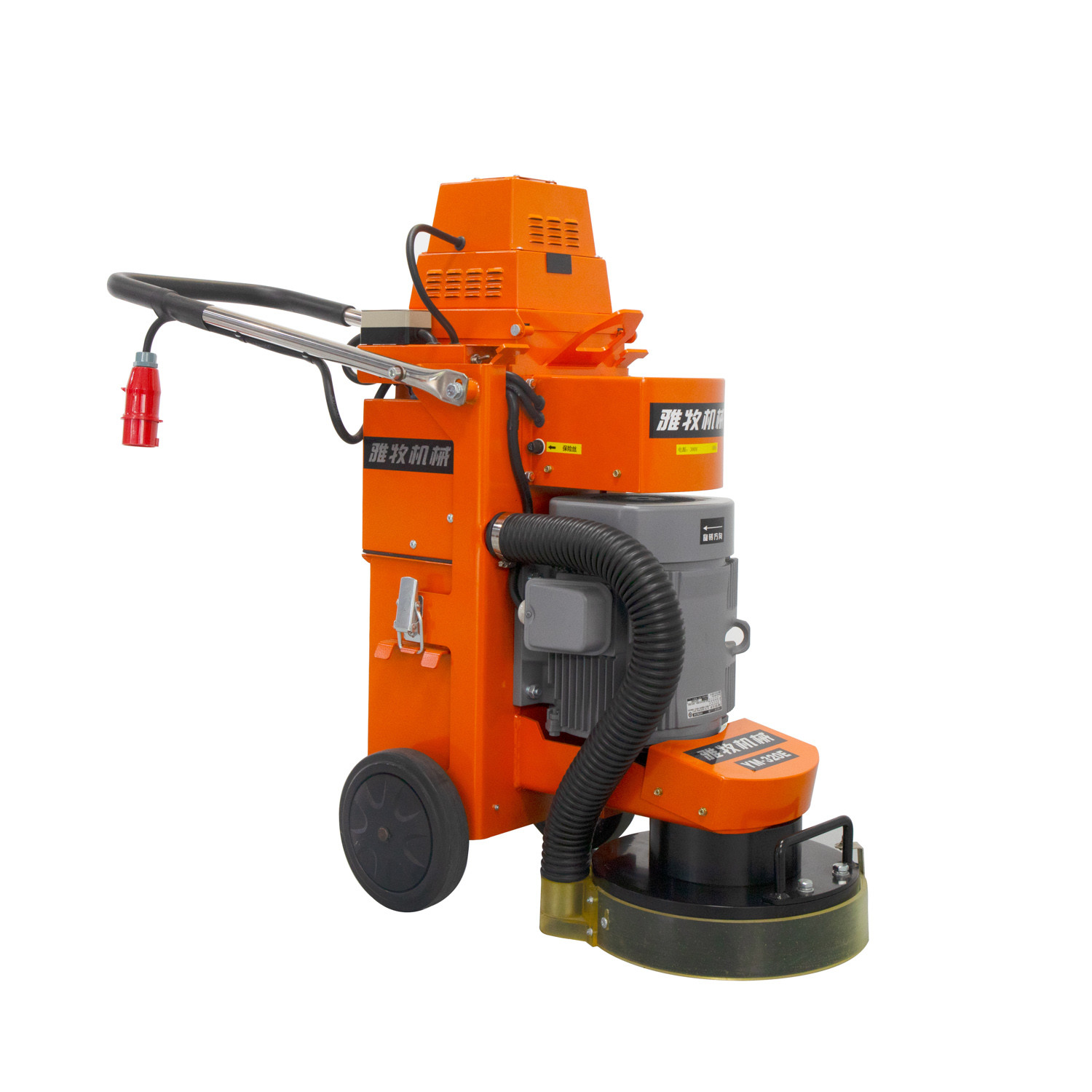

Frequency Converter 50/60HZ Concrete Floor Grinding Machine
Product Description:
The Concrete Floor Grinding Machine is a powerful and efficient floor driving grinding machine that can be used to effectively grind and polish concrete, marble, terrazzo, epoxy stone and other types of floors. It is equipped with a maximum air volume of 3m³/min, a noise level of ≤70dB, a motor power of 3.7KW*4P(5HP) and a weight of 117KG. The machine is designed to provide exceptional performance and superior durability for any concrete floor grinding and polishing jobs. It is suitable for both residential and commercial applications. It is also easy to operate and maintain making it an ideal choice for anyone looking for an effective and reliable floor grinding and polishing machine.
The Concrete Floor Grinding Machine features advanced technology, precision performance and high efficiency. It is equipped with an adjustable speed control system that allows users to adjust the speed according to the different needs of the job. The machine also comes with a dust-free design for better air quality and a long-lasting motor for greater reliability. It also features a durable and ergonomic design that ensures maximum comfort and convenience while operating. All of these features make the Concrete Floor Grinding Machine the perfect choice for any floor driving grinding and polishing jobs.
YAMU YM-320E Edge Concrete Floor Grinder Polishing Machine is designed to perform effective edge grinding and polishing of concrete, terrazzo, marble and epoxy stone floors. It is equipped with a powerful motor, robust alloy material and a dust collection efficiency of 99%. The grinding broadband is 300mm and its weight is 117KG. The rated voltage is 220V*5A and it is certified by ISO9001. The minimum order quantity is 1PCS and the price is negotiable. The delivery time is 7 days and payment terms are T/T. The package detail is wooden case and the supply ability is 10000PCS each month.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 |
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) | |||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||
We provide customized service for our Terrazzo Marble Epoxy Stone concrete Floor Grinders, Hand push Semi-automatic concrete grinding machine, and Hand push Semi-automatic concrete grinding machine.
Brand Name: YAMU
Model Number: YM-320E
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 10000PCS each month
Frequency Converter: 50/60HZ
Noise: ≤70dB
Rated voltage*current: 380V*13A
Phase: 3 Phase
Name : Dust Cleaner
We provide full technical support and service for Concrete Floor Grinding Machine.
Our technical support team is available 24/7 to answer any questions and help you with any problems you may have.
We also provide online resources such as manuals, FAQs, and videos, to help you get the most out of your Concrete Floor Grinding Machine.
If you ever need help with maintenance or repairs, our experienced technicians are available to provide on-site assistance.
We also offer a full range of spare parts for all our Concrete Floor Grinding Machines.
