| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | LP-302 |
| Minimum Order Quantity: | 1PCS |
| Price: | 1850usd -2300usd |
| Packaging Details: | WOODEN CASES |
| Delivery Time: | 7DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs one month |
| Coating Capacity: | 100KG | Capapcuty Of Glass Bead Box: | 20KG |
|---|---|---|---|
| Marking Width: | 100-450mm | Marking Thickness: | 1-2.5mm |
| Bead Discribution: | 20-30kg/Min | Weight: | 165kg |
| Overall Dimension: | 900x1200x980mm | Coating Speed: | 1.5km/hrs |
| High Light: | 100kg Hot Thermoplastic Road Marking Machine,60l Hot Thermoplastic Road Marking Machine,Self propelled road lane marking machine |
||

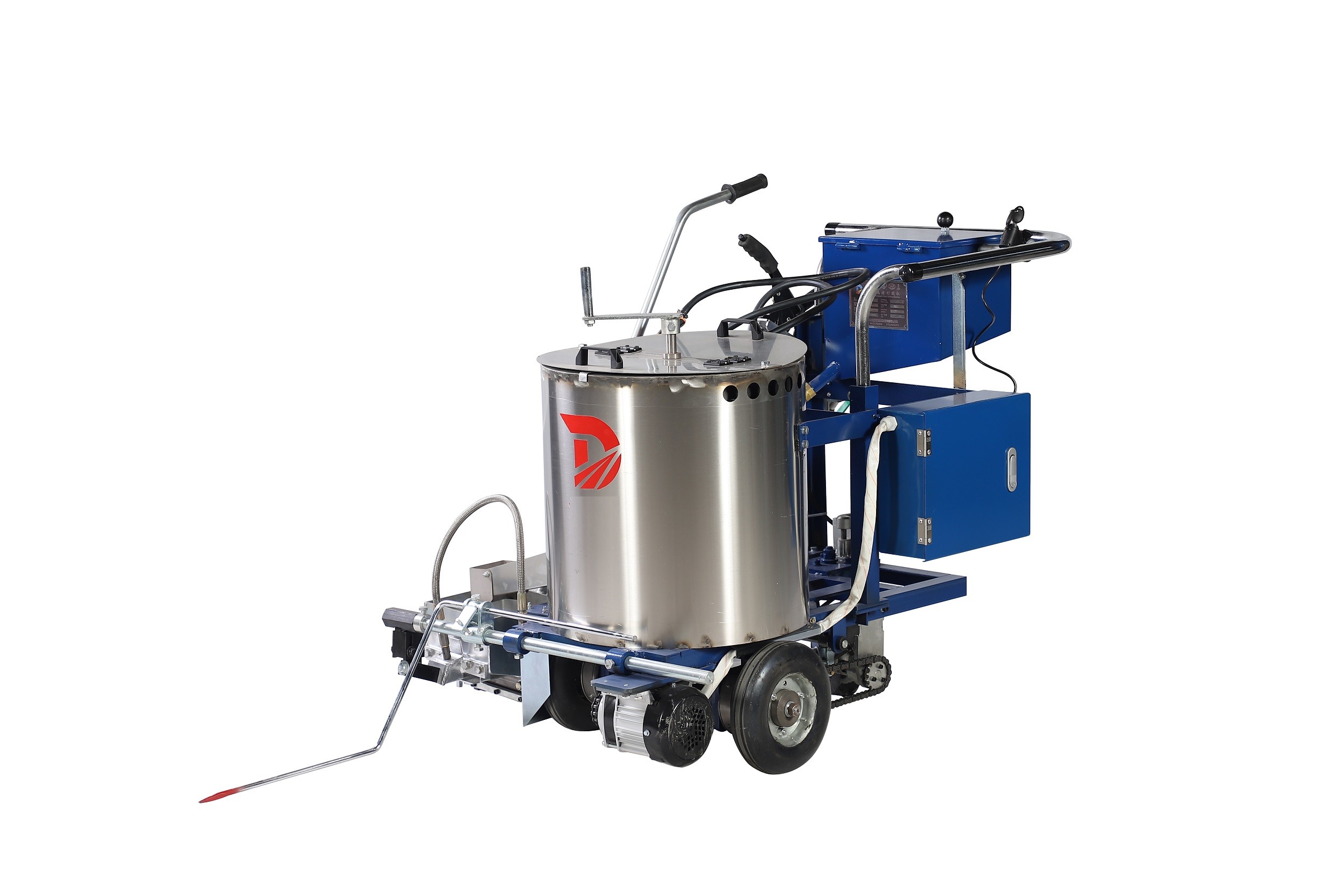

Self-propelled Thermoplastic Road Marking Machine
Thermoplastic road marking machine description
1. Paint barrels: double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices.
2. Glass Bead storage box: 20 kg / box.
3. Glass beads beads sow browser: synchronous clutch spread with speed gearshift device.
4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm.Be exchangeable. 5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5mm.
6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction.
7. Heating method: liquefied petroleum gas.
8. Subscript Line Width: engineering requirements in accordance with the replacement of different specifications crossed hopper.
Thermoplastic road marking machine application
A thermoplastic road marking machine is used to apply thermoplastic pavement markings on roads, parking lots, and other paved surfaces. These markings are used to provide guidance and information to drivers and pedestrians, such as lane dividers, crosswalks, stop lines, and arrows.
The thermoplastic road marking machine is designed to melt and apply thermoplastic material onto the pavement. The machine consists of a heating system, a hopper for the thermoplastic material, a marking shoe, and a control system.
| Model | LP-302 |
| Paint Capacity | 120kg (60L) |
| Capacity Of Glass Beads Box | 20kg |
| Battery | 48V-12AH |
| Fuel | Gasoline |
| Heating temperature | 180-210℃ |
| Working speed | 1500m/h |
| Marking thickness | 1-2.5mm |
| Line marking width | 150/200/300/400/450mm(optional) |
| Size and Weight | 1200×900×980mm 165kg |
We are offering a wide range of Road marking equipment of the best quality to the clients.
Clients could easily avail from us the truly versatile and highly reliable range of Floor equipment at competitive prices.
These are energy efficient and are able to give reliable performance over long period of time.
In order to efficiently find the products you need,please send us an inquiry to tell you requests,we will repaly you immediately. you can't miss it!
