| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320D |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| Dust Collection Capacity: | 19L | Color: | Orange,White,Red |
|---|---|---|---|
| Speed: | 1400r/min | Motor Power（kw）: | 3.7KW*4P(5HP） |
| Rated Voltage*current: | 380V*8.1A | Weight: | 110KG |
| Maximum Air Volume: | 3m³/min | Output Power: | 1kw |
| High Light: | 380v flooring grinder machine,3.7kw concrete wall grinding machine,semi automatic concrete wall grinding machine |
||

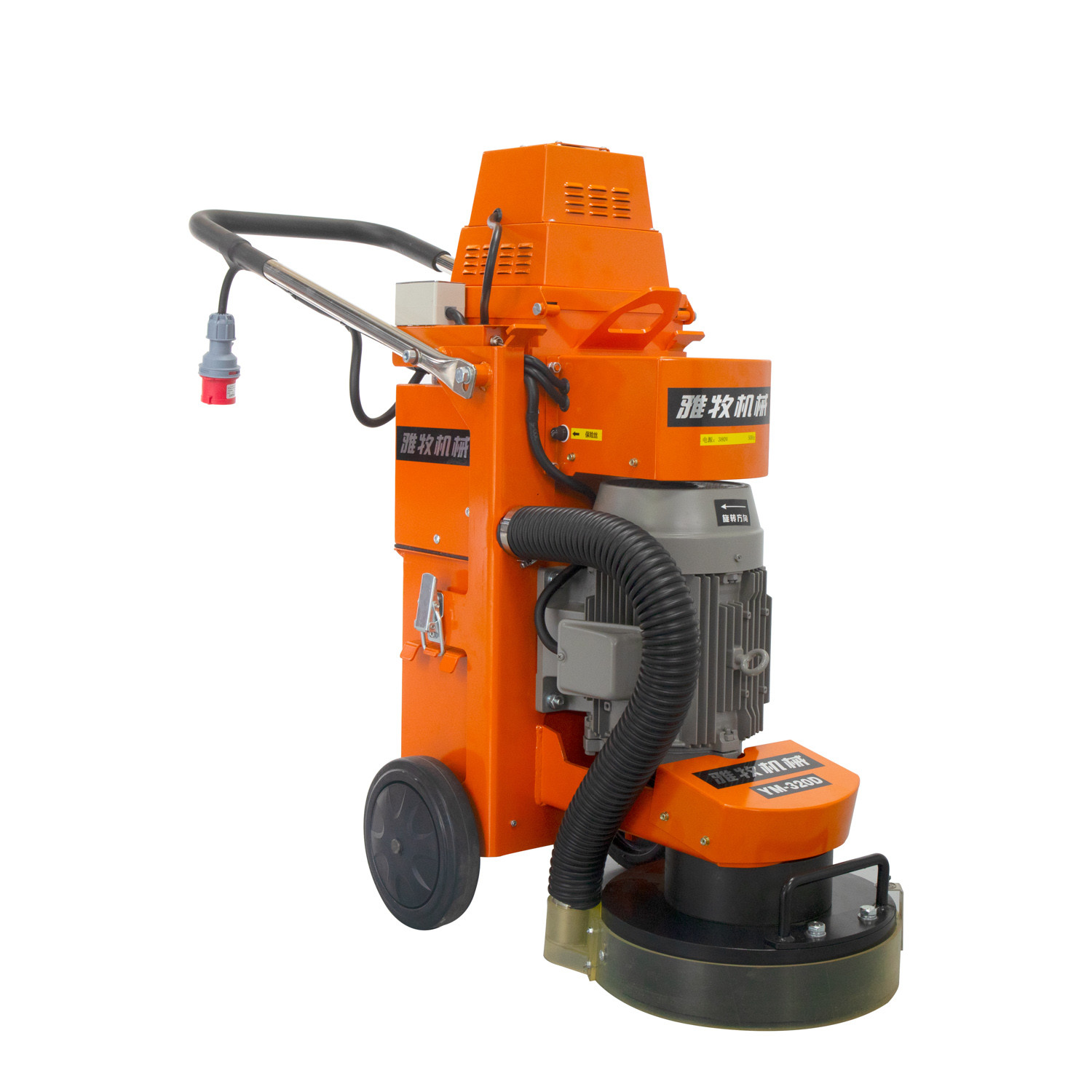

Semi Automatic Hand Push Concrete Wall Grinding Machine With 3.7KW Motor Power 220V/380V Rated Voltage
This Edge Concrete Floor Grinder Polishing Machine is a powerful and versatile machine that is perfect for grinding and polishing concrete floors. It features a 1400r/min speed, and a 3.7KW*4P(5HP) motor power to make the grinding process faster and more efficient. It also features a 300mm grinding broadband, and is available in three colors - orange, white, and red. For added convenience, the machine also has an output power of 1kw. It is an ideal tool for edge concrete floor grinding and polishing, and is perfect for both hand push and semi-automatic concrete grinding.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 |
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) | |||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||
Concrete Floor Grinding Machine Technical Support and Service
