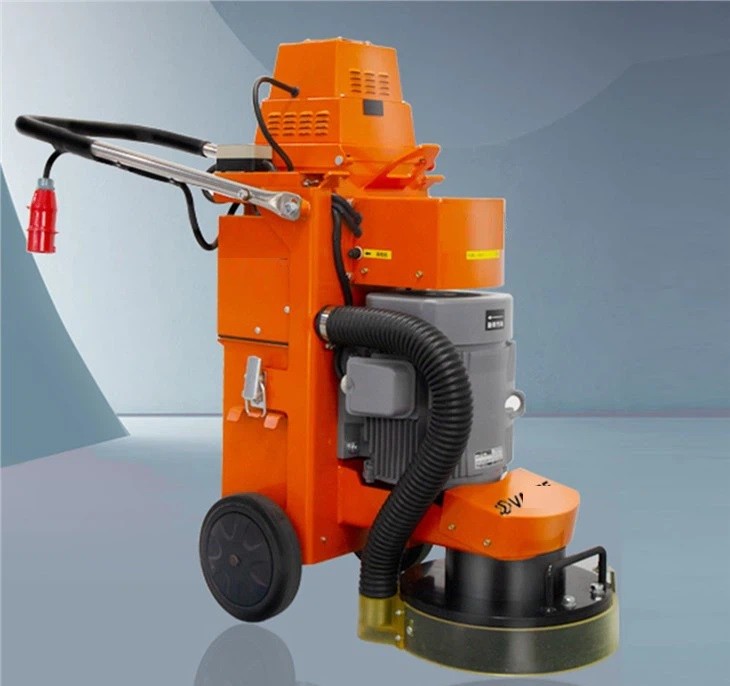

220V Concrete Floor Grinder With Dust Collection For Terrazzo Marble Epoxy Stone

Basic Information
Place of Origin: China
Brand Name: YAMU
Certification: ISO9001
Model Number: YM-320D
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 10000PCS each month
Name: Concrete Floor Grinding Machine Weight: 110KG
Dust Collection Efficiency: 99% Size: 1200*400*896
Dust Collection: Yes Maximum Air Volume: 3m³/min
Speed: 1400r/min Noise: ≤70dB
High Light:

Dust Collection commercial concrete floor grinder

,

epoxy floor grinder and polisher

,

marble floor grinder and polisher

220V Concrete Floor Grinder With Dust Collection For Terrazzo Marble Epoxy Stone

Product Description:

The Concrete Floor Grinding Machine is a powerful and reliable dust cleaner that is designed to grind and polish concrete floors. It is equipped with a 220V voltage and 20m (2mm²*4core) length of power cord that provides enough power for the machine to run efficiently. This machine is also equipped with a 5A rated voltage, ensuring that the machine is able to provide a smooth and reliable operation. It is equipped with a powerful motor that provides a high-speed grinding and polishing action that can easily handle tough surfaces. This Concrete Floor Grinding and Polishing Machine is perfect for grinding and polishing concrete floors, as well as other surfaces, to provide a smooth finish that is durable and long-lasting. It also features a Floor Driving Grinding feature that allows the user to easily adjust the speed and intensity of the grinding and polishing action. This reliable and efficient Concrete Floor Grinding and Polishing Machine is perfect for commercial and industrial use.



Features:

  • Product Name: Concrete Floor Grinding Machine
  • Noise: ≤70dB
  • Grinding broadband: 300mm
  • Rated voltage*current: 380V*8.1A
  • Material: Alloy
  • Motor power(kw): 3.7KW*4P(5HP)
  • Hand push Semi-automatic concrete grinding machine
  • Floor Driving Grinding Machine
  • Hand push Semi-automatic concrete grinding machine


Applications:

YAMU is a well-known brand of Concrete Floor Grinding Machine. Model YAMU-001 is a Floor Driving Grinding Machine, Hand push Semi-automatic concrete grinding machine, Concrete Floor Grinding polishing Machine. The Place of Origin is China and it is certified with ISO9001. The minimum order quantity is 1PCS and the price is negotiable. The packaging details are Wooden Case and the delivery time is 7days. The payment terms are T/T and the supply ability is 10000PCS each month. The length of power cord is 20m (2mm²*4core) and the dust collection capacity is 19L. The rated voltage and current is 380V*8.1A and the voltage is 220V. The output power is 1kw.



Technical Parameters:

Mode YM-320B YM-320D YM-320E YM-320V
Work Diameter 320mm 320mm 320mm 320mm
Voltage 380v 380v 380v 220v
Phase 3 phase 3 phase 3 phase 1 phase
Power 3.7KW (5Hp) 3.7KW (5Hp) 3.7KW (5Hp) 3.7KW (5Hp)
Frequency Converter       3.7KW (5Hp)
Disc Quantity 3 3 3 3
Rotating Speed 0-720rpm 0-720rpm 0-720rpm 0-720rpm
Rated voltage(cleaner) 220V * 5A 220V * 5A 220V * 5A 220V * 5A
Output power 1KW 1KW 1KW 1KW
Maximum air volume 3M ³/ min 3M ³/ min 3M ³/ min 3M ³/ min
Dust collection capacity 19L 19L 19L 19L
Weight 120kg 120kg 120kg 120kg
Length * width * height (mm) 1200 * 400 * 896 1200 * 400 * 896 1200 * 400 * 896 1200 * 400 * 896
MOTOR TYPE Toshiba Japan Toshiba Japan Toshiba Japan Toshiba Japan
Power line length (m)                                           20M (2mm ²* 4cores)
Machine type                         Terrazzo Marble Epoxy Stone concrete Floor Grinders
220V Concrete Floor Grinder With Dust Collection For Terrazzo Marble Epoxy Stone 0220V Concrete Floor Grinder With Dust Collection For Terrazzo Marble Epoxy Stone 1220V Concrete Floor Grinder With Dust Collection For Terrazzo Marble Epoxy Stone 2220V Concrete Floor Grinder With Dust Collection For Terrazzo Marble Epoxy Stone 3220V Concrete Floor Grinder With Dust Collection For Terrazzo Marble Epoxy Stone 4

220V Concrete Floor Grinder With Dust Collection For Terrazzo Marble Epoxy Stone 5Customization:

We offer custom services for Concrete Floor Grinding Machine. Our Concrete Floor Grinding Machine is made by YAMU, with Model Number: YAMU-001. It has ISO9001 certification and Minimum Order Quantity: 1PCS. The price is negotiable and it is packaged in wooden case. Delivery time is 7 days and payment terms is T/T. We have 10000PCS supply ability each month. This machine has 220V*5A rated voltage, 19L dust collection capacity, and it has dust collection function. The weight of the machine is 110KG. We also offer Edge Concrete Floor Grinder Polishing Machine, Terrazzo Marble Epoxy Stone Concrete Floor Grinders.



Support and Services:

Technical Support & Services for Concrete Floor Grinding Machine

We provide comprehensive technical support and services for our Concrete Floor Grinding Machine customers.

  • We offer 24/7 phone service for any technical questions or issues.
  • We provide on-site installation and repair services.
  • We provide regular maintenance and inspection services.
  • We offer remote support and troubleshooting.
  • We provide training and technical support.
