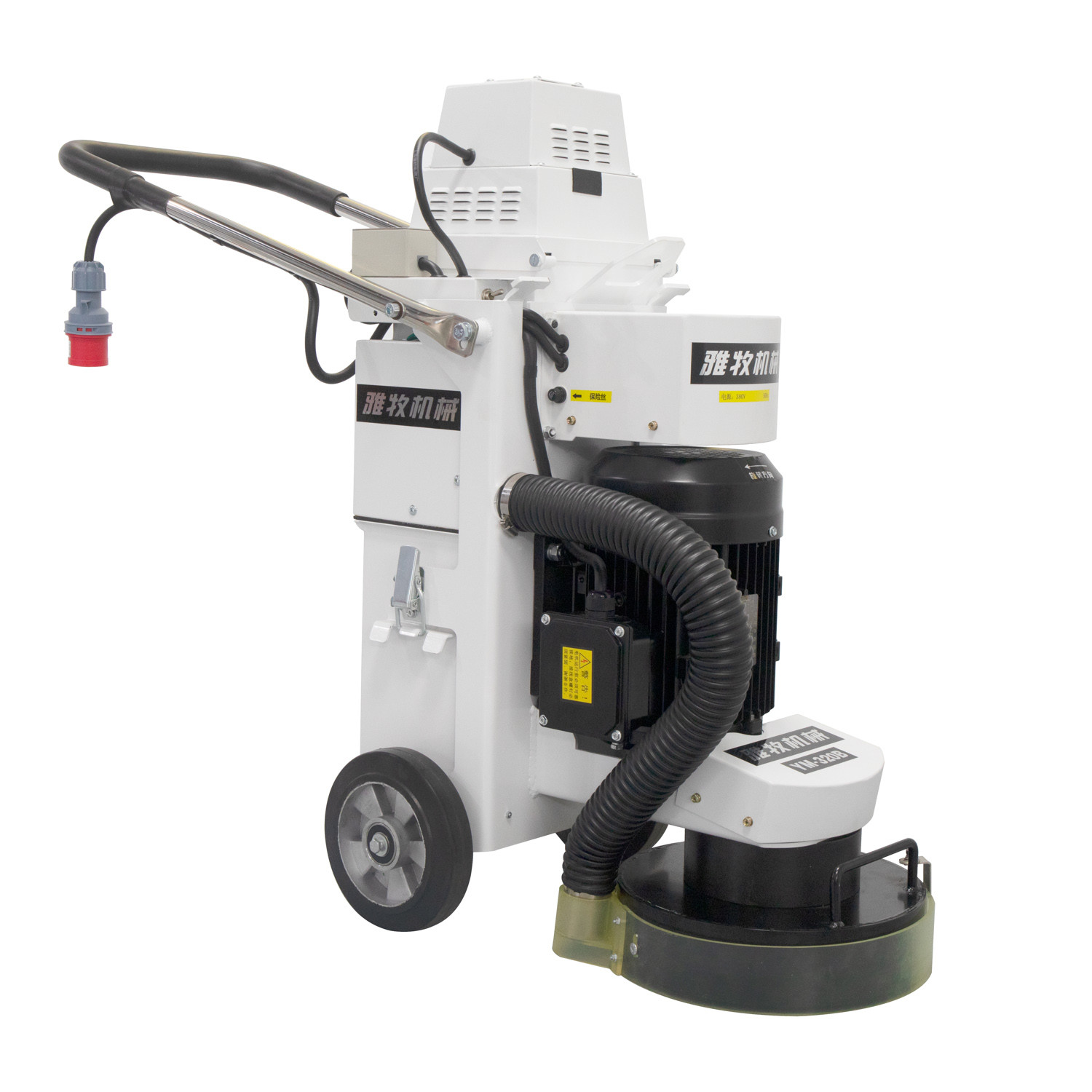

High Efficiency Concrete Floor Grinding Machine Dust Collection 19L Capacity 320mm

Basic Information
Place of Origin: China
Brand Name: YAMU
Certification: ISO9001
Model Number: YM-320B
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 10000PCS each month
Dust Collection Efficiency: 99% Dust Collection: Yes
Rated Voltage*current: 380V*8.1A Dust Collection Capacity: 19L
Grinding Broadband: 300mm Rated Voltage: 220V*5A
Material: Alloy Name: Dust Cleaner
High Light:

Concrete Floor Grinding Machine 300mm

,

Concrete Floor Grinding Machine 19l

,

5hp floor surface grinder



High Efficiency Concrete Floor Grinding Machine Dust Collection 19L Capacity 320mm

Product Description:

The Concrete Floor Grinding Machine is a hand push semi-automatic concrete grinding machine for grinding and polishing the surface of concrete floors. It is made of high-quality alloy and available in three colors: orange, white and red. It features a maximum air volume of 3m³/min and a weight of 110KG. This floor driving grinding machine can efficiently and quickly grind and polish the surface of concrete floors, providing you with a smooth and clean environment.

The Concrete Floor Grinding Machine is equipped with a powerful motor and a sturdy construction, which ensures a reliable operation and a long service life. It is also equipped with a dust-proof design to reduce dust pollution and improve working efficiency. The machine is also very easy to operate and maintain, making it perfect for both home and commercial use.

The Concrete Floor Grinding Machine is the ideal choice for grinding and polishing concrete floors. It is simple and convenient to use, and it offers excellent grinding and polishing results. With its easy-to-use design, it is perfect for both novice and experienced users. It is a great choice for those who are looking for a reliable and efficient floor grinding machine.



Features:

  • Product Name: Concrete Floor Grinding Machine
  • Dust Collection Efficiency: 99%
  • Maximum air volume: 3m³/min
  • Output power: 1kw
  • Rated voltage: 220V*5A
  • Noise: ≤70dB
  • Suitable for: Terrazzo Marble Epoxy Stone concrete Floor Grinders
  • Application: Concrete Floor Grinding polishing Machine, Edge Concrete Floor Grinder Polishing Machine


Applications:

YAMU YM-320B Edge Concrete Floor Grinder Polishing Machine is a professional floor driving grinding machine ideal for concrete, terrazzo, marble, epoxy stone floor grinding, polishing and maintenance. It is equipped with a powerful 4KW*40(5HP)motor and has a dust collection efficiency of 99%. This concrete floor grinding machine is light in weight and has a maximum air volume of 3m³/min. It also features a dust collection system which is designed to easily collect dust particles for improved operator safety. It is certified with the ISO9001 standard and is available with a minimum order quantity of 1PCS. The price is negotiable and it is delivered within 7 days of purchase. It is also backed by a supply ability of 10000PCS per month and payment terms of T/T. The YAMU YM-320B Edge Concrete Floor Grinder Polishing Machine is packed in a wooden case and has a weight of 110KG.



Technical Parameters:

Mode YM-320B YM-320D YM-320E YM-320V
Work Diameter 320mm 320mm 320mm 320mm
Voltage 380v 380v 380v 220v
Phase 3 phase 3 phase 3 phase 1 phase
Power 3.7KW (5Hp) 3.7KW (5Hp) 3.7KW (5Hp) 3.7KW (5Hp)
Frequency Converter       3.7KW (5Hp)
Disc Quantity 3 3 3 3
Rotating Speed 0-720rpm 0-720rpm 0-720rpm 0-720rpm
Rated voltage(cleaner) 220V * 5A 220V * 5A 220V * 5A 220V * 5A
Output power 1KW 1KW 1KW 1KW
Maximum air volume 3M ³/ min 3M ³/ min 3M ³/ min 3M ³/ min
Dust collection capacity 19L 19L 19L 19L
Weight 120kg 120kg 120kg 120kg
Length * width * height (mm) 1200 * 400 * 896 1200 * 400 * 896 1200 * 400 * 896 1200 * 400 * 896
MOTOR TYPE Toshiba Japan Toshiba Japan Toshiba Japan Toshiba Japan
Power line length (m) 20M (2mm ²* 4cores)
Machine type Terrazzo Marble Epoxy Stone concrete Floor Grinders







High Efficiency Concrete Floor Grinding Machine Dust Collection 19L Capacity 320mm 0

High Efficiency Concrete Floor Grinding Machine Dust Collection 19L Capacity 320mm 1High Efficiency Concrete Floor Grinding Machine Dust Collection 19L Capacity 320mm 2High Efficiency Concrete Floor Grinding Machine Dust Collection 19L Capacity 320mm 3

Customization:

Customized Concrete Floor Grinding Machine
  • Brand Name: YAMU
  • Model Number: YM-320B
  • Place of Origin: China
  • Certification: ISO9001
  • Minimum Order Quantity: 1PCS
  • Price: Negotiation
  • Packaging Details: Wooden Case
  • Delivery Time: 7days
  • Payment Terms: T/T
  • Supply Ability: 10000PCS each month
  • Name : Dust Cleaner
  • Grinding broadband: 300mm
  • Output power: 1kw
  • Dust Collection: Yes
  • Color: Orange,White,Red
  • Special Features: Concrete Floor Grinding polishing Machine, Floor Driving Grinding Machine, Hand push Semi-automatic concrete grinding machine


Support and Services:

Technical Support & Service for Concrete Floor Grinding Machine

We offer a wide range of technical support and service for our Concrete Floor Grinding Machine. We have a team of qualified technical experts who are always available to provide advice and assistance. Our professional customer service team is available to answer any questions you may have regarding the installation, maintenance and repair of the machine.

Our comprehensive technical support and service includes:

  • Installation and setup assistance
  • Troubleshooting and repair of the machine
  • Preventive maintenance and regular servicing
  • Regular inspections and diagnosis of the machine
  • Replacement of damaged components

We are committed to providing the best technical support and service for our customers. If you have any questions or need help with the machine, please do not hesitate to contact us.
