| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320B |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| Color: | Orange,White,Red | Maximum Air Volume: | 3m³/min |
|---|---|---|---|
| Material: | Alloy | Rated Voltage*current: | 380V*8.1A |
| Grinding Broadband: | 300mm | Motor Power（kw）: | 4KW*40（5HP） |
| Length Of Power Cord（m）: | 20m(2mm²*4core) | Output Power: | 1kw |
| High Light: | 5hp commercial floor grinder,8.1a grinder concrete machine,380v grinder concrete machine |
||
The Edge Concrete Floor Grinder Polishing Machine is an ideal equipment for grinding and polishing concrete floors. It is equipped with a powerful 4KW*40 motor (5HP) and high-efficiency dust collection system, making it possible to grind and polish concrete floors with great efficiency. It has a rated voltage of 220V*5A, and its noise level is ≤70dB. It also has a dust collection capacity of 19L, making it easy to keep the working environment clean and pleasant.
The Edge Concrete Floor Grinder Polishing Machine is perfect for grinding, polishing, and restoring concrete, terrazzo, marble, and epoxy stone floors. It is also suitable for grinding and polishing concrete floors, removing old coatings, and refining concrete surfaces. The powerful motor, dust collection system, and adjustable speed control make this machine very efficient and easy to use.

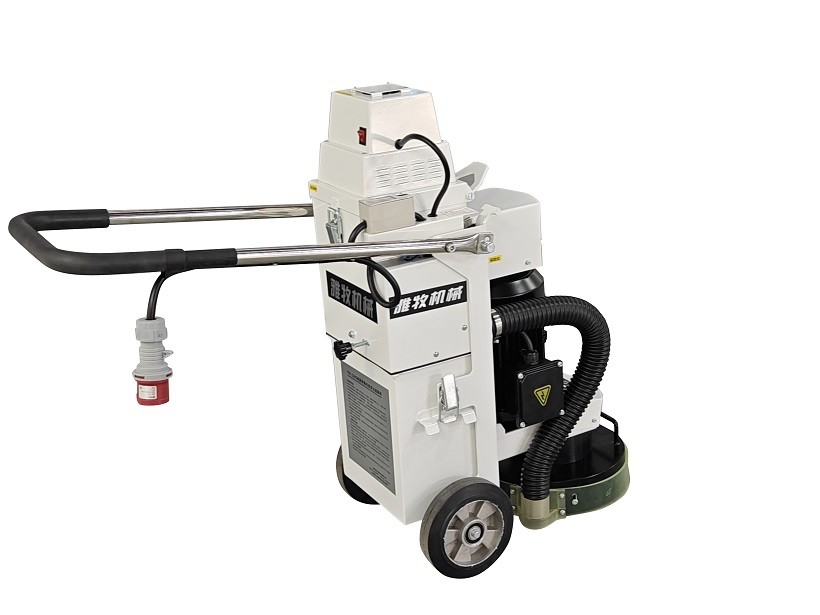

The YAMU YM-320B Edge Concrete Floor Grinder Polishing Machine is ideal for polishing concrete floors and edges. It is a powerful and reliable floor driving grinding machine with a motor power of 4KW*40 (5HP), an output power of 1KW and a size of 1200*400*896. This machine is certified with ISO9001 and has a minimum order quantity of 1PCS. It comes in three colors (orange, white and red) and is available at a price that is negotiable. It also has a dust cleaner and its delivery time is 7days. This machine has a supply ability of 10000PCS each month and payment terms are via T/T. It is packaged in a wooden case for safe and secure shipping. The Edge Concrete Floor Grinder Polishing Machine from YAMU is highly efficient and durable, providing professional-grade results. It is perfect for polishing concrete floors and edges, making it the perfect choice for industrial and commercial applications.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 |
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) | |||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||
We offer custom-made Edge Concrete Floor Grinder Polishing Machine, Floor Driving Grinding Machine and Edge Concrete Floor Grinder Polishing Machines.
We provide technical support and service for our Concrete Floor Grinding Machine to ensure that it is functioning correctly and safely. The following services are included:
If you have any questions or concerns about the technical support and service for our Concrete Floor Grinding Machine, please feel free to contact us.
