| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-420 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| Name: | Concrete Floor Grinding Machine | Color: | Orange,White,Red |
|---|---|---|---|
| Length Of Power Cord（m）: | 20m(2mm²*4core) | Weight: | 210KG |
| Motor Power: | 7.5KW | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, |
| Dust Collection: | Yes | Dust Collection Capacity: | 31L |
| High Light: | 3 phase concrete road grinding machine,1500mm concrete grinding machine,400mm concrete grinding machine |
||

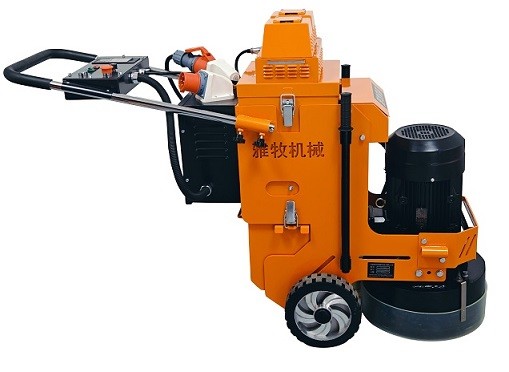

3 Phase Concrete Grinding Machine With 420mm Grinding Width
The Edge Concrete Floor Grinder Polishing Machine is a powerful and efficient industrial floor grinding equipment designed for grinding, polishing, and cleaning concrete surfaces. With a size of 1500*420*530mm, a grinding width of 400mm, and a rated voltage of 380V, this 3-phase machine is available in three colors: orange, white, and red.
The Edge Concrete Floor Grinder Polishing Machine is an ideal choice for concrete grinding and polishing, especially for creating smooth edges for concrete floors. It is equipped with a unique and advanced grinding system that allows for quick grinding and polishing. This machine is also equipped with advanced safety features that keep you and your workspace safe from harm.
The Edge Concrete Floor Grinder Polishing Machine is perfect for grinding and polishing concrete floors, walls, and edges. Its powerful motor and advanced grinding system make it an efficient and reliable choice for all your concrete grinding and polishing needs.
The Concrete Floor Grinding Machine, with brand Name YAMU and Model Number YM-420, is the perfect choice for a wide range of applications. Its high output power of 2kw and length of power cord of 20m(2mm²*4core) make it a powerful and reliable tool to get your job done. The core components, such as PLC, Engine, Bearing, Gearbox, Motor, all come with the certification of ISO9001. The dust collection system ensures a clean and safe environment while performing the grinding and polishing operation. With minimum order quantity of 1PCS and a delivery time of 7 days, the Concrete Floor Grinding Machine is available at a negotiable price. YAMU is capable of providing 10000PCS each month and the package is available in wooden case.
The Concrete Floor Grinding Machine from YAMU is a hand push semi-automatic concrete grinding machine, great for floor grinding and polishing. It is easy to operate and provides a reliable and efficient performance. The machine is perfect for domestic and commercial applications.
| Mode | MB-300 | YM-420 | YM-600D |
| Work Diameter | 300mm | 420mm | 600mm |
| Voltage | 380v | 380v | 380v |
| Phase | 3 phase | 3 phase | 3 phase |
| Power | 2.2KW | 7.5KW | 5.5KW |
| Frequency Converter | 2.2KW | 7.5KW | |
| Disc Quantity | 1 | 3 | 6 |
| Rotating Speed | 0-960rpm | 0-1000rpm | 0-900rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | |
| Output power | 2KW | 2KW | |
| Maximum air volume | 6M ³/ min | 6M ³/ min | |
| Dust collection capacity | 31L | 41L | |
| Weight | 110kg | 210kg | 227kg |
| Length * width * height (mm) | 1300 * 530 * 1070 | 1500 * 420 * 530 | 1500 * 650* 936 |
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) | ||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | ||
Brand Name: YAMU
Model Number: YM-420
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 10000PCS each month
Output power: 2kw
Length of power cord(m): 20m(2mm²*4core)
Material: Alloy
Dust Collection: Yes
Dust collection capacity: 31L
Product Description: YAMU YM-420 Hand push Semi-automatic concrete grinding machine is a Floor Driving Grinding Machine suitable for Edge Concrete Floor Grinder Polishing Machine. It has 2kw power output, 20m power cord with 2mm²*4core, alloy material, 31L dust collection capacity and dust collection function.
We provide technical support and service for our Concrete Floor Grinding Machines. Our team is available to answer any questions you have and to provide assistance with troubleshooting any issues you may be having. Our team can provide advice on the best way to use our machines, and provide guidance on any maintenance issues. We can also provide on-site support and repair service if needed.
We also provide a variety of accessories and spare parts for our Concrete Floor Grinding Machines, including replacement blades, grinding wheels, and other parts as needed. If you ever need a part replaced, we can get it quickly and have it shipped to you as soon as possible.
If you ever need help with any aspect of using our Concrete Floor Grinding Machines, please do not hesitate to contact us. We are here to help you get the most out of your machine and to ensure you have a pleasant experience.
