| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-420 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| Dust Collection Efficiency: | 99% | Size: | 1500*420*530mm |
|---|---|---|---|
| Dust Collection Capacity: | 31L | Maximum Air Volume: | 6m/min |
| Phase: | 3 Phase | Rated Voltage: | 380V |
| Length Of Power Cord（m）: | 20m(2mm²*4core) | Name: | Concrete Floor Grinding Machine |
| High Light: | 400mm Concrete Floor Grinding Machine,31l Concrete Floor Grinding Machine,6m/min concrete grinding equipment |
||

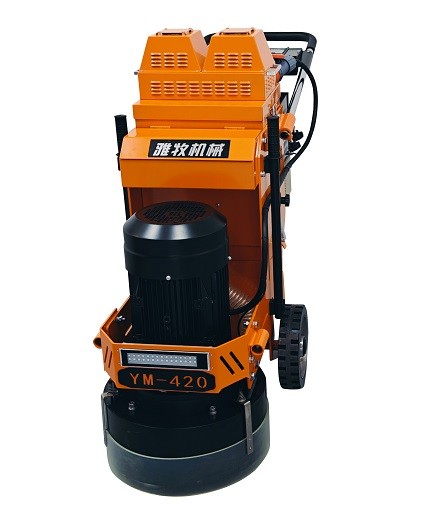

The Concrete Floor Grinding Machine is a powerful and efficient floor driving grinding machine that can be used to grind terrazzo, marble, epoxy stone and concrete floors. This machine is equipped with a PLC, engine, bearing, gearbox, motor and dust collection system, providing a perfect combination of efficiency and reliability. The alloy material and advanced manufacturing technology make the machine light and strong, with a weight of only 210KG. The rated voltage is 380V, and the dust collection efficiency is up to 99%, making it the perfect choice for terrazzo, marble, epoxy stone and concrete floor grinding.
The Concrete Floor Grinding Machine is developed by YAMU, with model number YM-420. It is certified with ISO9001, and the minimum order quantity is 1PCS. The price is negotiable and the packaging details are Wooden Case. The delivery time is 7 days. The payment terms are T/T, and the supply ability is 10000 PCS each month. It comes with Dust Collection, PLC, Engine, Bearing, Gearbox, Motor, and length of power cord is 20m(2mm²*4core). The phase is 3 phase. The Concrete Floor Grinding polishing Machine is ideal for Hand push Semi-automatic concrete grinding machine, and Floor Driving Grinding Machine, making it a perfect choice for professional or personal use.
| Mode | MB-300 | YM-420 | YM-600D |
| Work Diameter | 300mm | 420mm | 600mm |
| Voltage | 380v | 380v | 380v |
| Phase | 3 phase | 3 phase | 3 phase |
| Power | 2.2KW | 7.5KW | 5.5KW |
| Frequency Converter | 2.2KW | 7.5KW | |
| Disc Quantity | 1 | 3 | 6 |
| Rotating Speed | 0-960rpm | 0-1000rpm | 0-900rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | |
| Output power | 2KW | 2KW | |
| Maximum air volume | 6M ³/ min | 6M ³/ min | |
| Dust collection capacity | 31L | 41L | |
| Weight | 110kg | 210kg | 227kg |
| Length * width * height (mm) | 1300 * 530 * 1070 | 1500 * 420 * 530 | 1500 * 650* 936 |
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) | ||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | ||
Brand Name: YAMU
Model Number: YM-420
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 10000PCS each month
Size: 1500*420*530mm
Weight: 210KG
Output power: 2kw
Motor power: 7.5KW
Rated voltage: 380V
Concrete Floor Grinding polishing Machine, Concrete Floor Grinding polishing Machine, Hand push Semi-automatic concrete grinding machine.
We provide professional technical support and service for our Concrete Floor Grinding Machine. Our customer service team is available 24/7 to answer any questions you may have about the product. We provide full installation, maintenance, and repair services for the machine. Additionally, we offer online technical support and troubleshooting assistance. Our team is also available to provide personalized advice and guidance on the best usage and maintenance of the machine.
