| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320V |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| Material: | Alloy | Grinding Head QUANTITY: | 3 |
|---|---|---|---|
| Color: | Orange,White,Red | Length Of Power Cord（m）: | 20m（4mm²*4core） |
| UNIQUE SELLING POINT: | High Operating Efficiency | MOTOR TYPE: | Toshiba Japan |
| WORKING SPEED: | 0-850RPM | START MODE: | ELECTRIC START |
| High Light: | Terrazzo Marble Concrete Floor Grinders,Epoxy Stone Concrete Floor Grinders,Alloy Concrete Grinding Equipment |
||

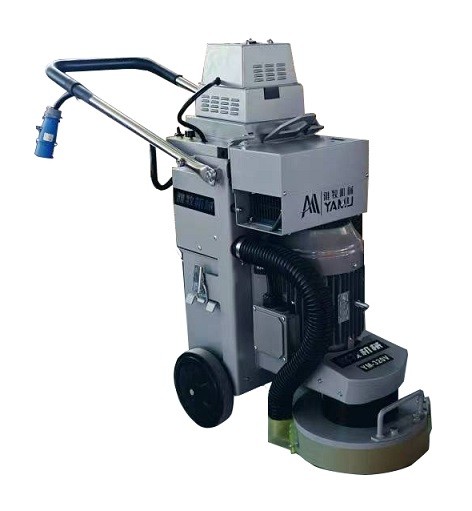

The Floor Driving Grinding Machine is a perfect choice for grinding and polishing terrazzo, marble, epoxy, stone and concrete floors. It has a variety of features to ensure excellent, efficient results and is suitable for both residential and commercial use. It is equipped with a dust collection system, which ensures a clean and dust-free working environment. The grinding width is 300MM and the rated voltage is 220V. It is a 3 phase machine made of high-quality alloy material which makes it durable and reliable. It is easy to operate and can be used to polish and grind a variety of surfaces. It also has adjustable pressure to ensure a smooth and even finish. The Floor Driving Grinding Machine is an ideal choice for grinding and polishing terrazzo, marble, epoxy, stone and concrete floors.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) |
1200 * 400 * 896
|
1200 * 400 * 896
|
1200 * 400 * 896
|
1200 * 400 * 896
|
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) |
20M (2mm ²* 4cores or 4mm ²* 4cores) |
|||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||
YAMU's YM-320V Concrete Floor Grinding Machine is a professional floor driving grinding machine that is certified by ISO9001, and is designed for grinding and polishing concrete floors. It is made in China with a minimum order quantity of 1PCS and a price that is negotiable. The delivery time is 7 days and payment is made by T/T. With a supply ability of 10000PCS each month, it has a working speed of 0-850RPM and a 3 phase system. It also comes with a dust collection system with 99% efficiency, and a High Operating Efficiency that is a unique selling point. The machine is safely and securely packaged in a wooden case.
We provide customised services for the Concrete Floor Grinding Machine with following attributes:
We offer a comprehensive technical support and service package for our Concrete Floor Grinding Machine. Our package includes:
To ensure our customers’ satisfaction, we provide a 24/7 help desk for our technical support and service. If you encounter any issue with your Concrete Floor Grinding Machine, please contact us immediately.
