| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320V |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| START MODE: | ELECTRIC START | WORKING SPEED: | 0-850RPM |
|---|---|---|---|
| UNIQUE SELLING POINT: | High Operating Efficiency | Color: | Orange,White,Red |
| Rated Voltage: | 220V | Name: | Concrete Double Power Trowel |
| Phase: | 1 Phase | Dust Collection Efficiency: | 99% |
| High Light: | 220V Concrete Floor Grinder,Concrete Floor Grinding Machine With Gearbox,850RPM Concrete Grinding Equipment |
||

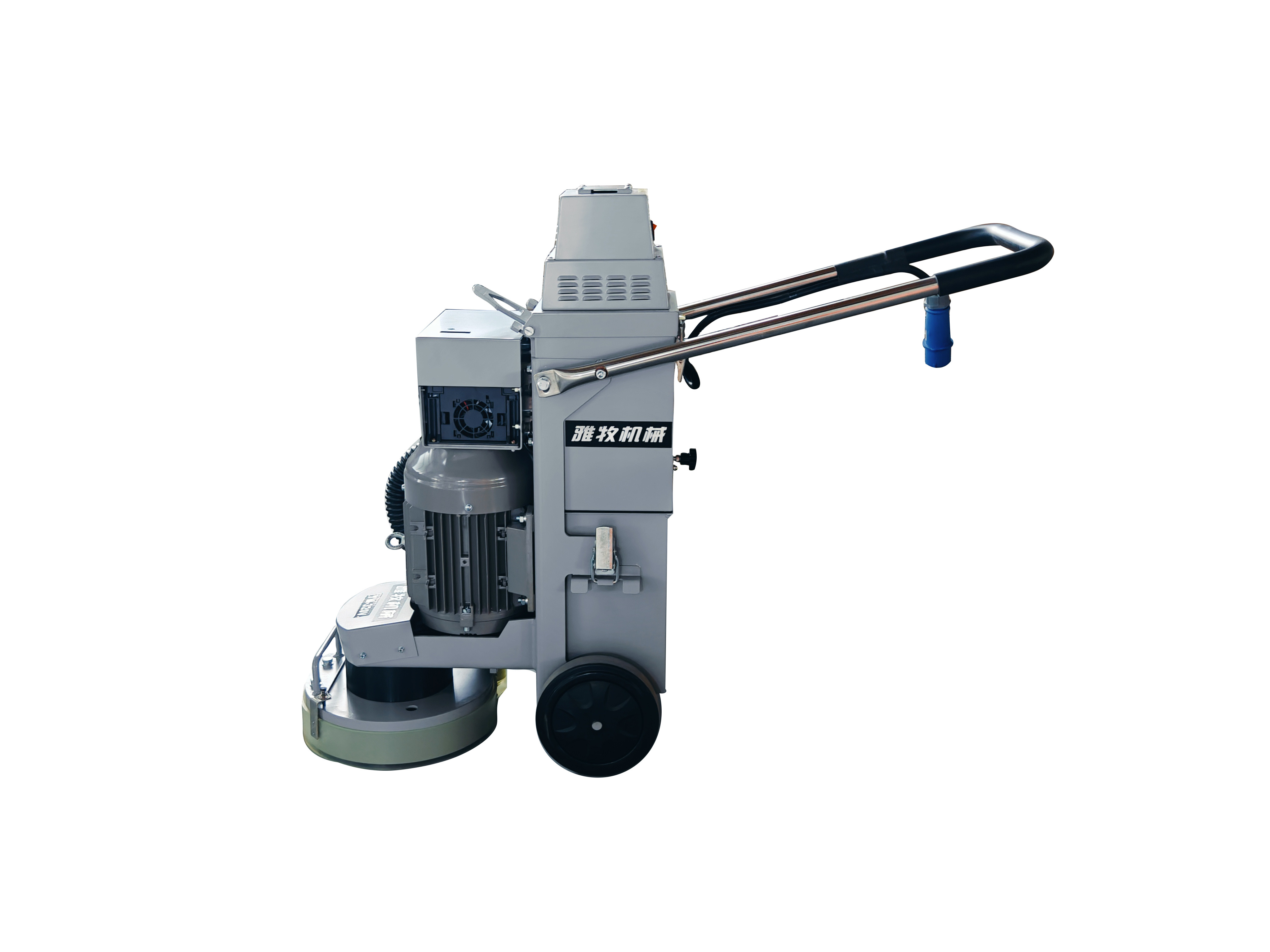

Concrete Floor Grinding Machine with Gearbox High Operating Efficiency
Introducing the Edge Concrete Floor Grinder Polishing Machine – the perfect tool to improve the efficiency of your grinding operations. This highly efficient machine is equipped with a 3.7kw motor, making it powerful enough to tackle even the toughest of jobs. It also features a 20-meter power cord (2.5mm²*4core) for easy access to any power source. Additionally, the machine boasts a grinding width of 300mm, allowing it to cover a large area in a single pass.
The Edge Concrete Floor Grinder Polishing Machine is designed with a unique selling point – its high operating efficiency. It has a hand-push-semi-automatic design, making it easy to operate and allowing you to complete your grinding projects quickly and with minimal effort. For added convenience, the machine is equipped with an electric start system, ensuring that it is ready to use in no time.
Whether you are looking for a reliable tool for your grinding projects or a high-performance machine to improve your efficiency, the Edge Concrete Floor Grinder Polishing Machine is the perfect choice. With its powerful motor, 20-meter power cord, and grinding width of 300mm, it is sure to meet your needs. Plus, its high operating efficiency and electric start system make it easy to use. Get the Edge Concrete Floor Grinder Polishing Machine today and take your grinding operations to the next level.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) |
1200 * 400 * 896
|
1200 * 400 * 896
|
1200 * 400 * 896
|
1200 * 400 * 896
|
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) | |||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||
YAMU YM-320V Hand push Semi-automatic concrete grinding machine is a powerful and reliable floor grinding machine with an operating efficiency of up to three times faster than manual polishers. It is certified by ISO9001 and has a minimum order quantity of 1PCS. The price is negotiable, and the packing is provided in wooden case for safe transportation and delivery within 7days. Payment terms are T/T. A maximum of 10000PCS can be supplied each month. This machine is powered by 220V and has a grinding width of 300MM with a three grinding head. Its unique selling point is its high operating efficiency and the material used for construction is alloy. It is well-suited for grinding and polishing concrete, terrazzo, marble, epoxy, and stone floors.
Brand Name: YAMU
Model Number: YM-320V
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 10000PCS each month
Length of power cord(m): 20m(2.5mm²*4core)
Material: Alloy
Phase: 1 Phase
Grinding width: 300MM
WORKING SPEED: 0-850RPM
YAMU YM-320V is a hand push semi-automatic concrete grinding machine, concrete floor grinding polishing machine, floor driving grinding machine. This machine has excellent performance in concrete grinding and polishing. It is easy to be operated and has a stable working speed. The length of power cord is 20m(2.5mm²*4core). The material of this product is alloy and it has 3 phase with a grinding width of 300mm. The working speed of this product is 0-850RPM.
We provide technical support and services for Concrete Floor Grinding Machines. Our experienced technicians are available to provide guidance on installation and usage, as well as troubleshooting and repair of any components that may be affected. We can also provide advice on maintenance and safety measures to ensure that your machine continues to work correctly and safely. We also offer a full range of spare parts and accessories, and we are always happy to answer any questions or queries you may have.
