| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320B |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| Material: | Alloy | Phase: | 3 Phase |
|---|---|---|---|
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, | Name: | Concrete Double Power Trowel |
| Rated Voltage: | 380V | Grinding Width: | 300MM |
| NET WEIGHT: | 110kg | POWER: | 3.7kw |
| High Light: | Alloy Concrete Floor Grinding Machine,300MM Concrete Grinding Equipment,380V Electric Start Concrete Floor Grinder |
||

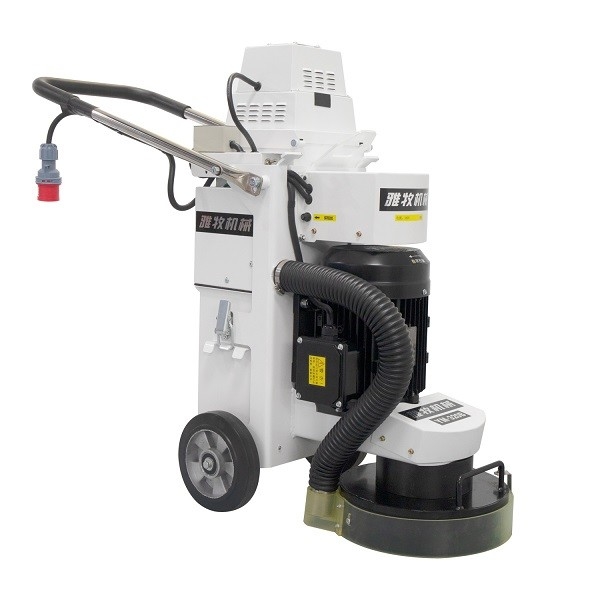

Concrete Floor Grinding Machine with Toshiba Japan Motor High Operating Efficiency
The Edge Concrete Floor Grinder Polishing Machine is a hand-push semi-automatic concrete grinding machine. It is made of alloy material and has a working speed of 0-850rpm. It has a grinding width of 300mm and a rated voltage of 380V. With a dust collection efficiency of 99%, it is highly efficient and easy to operate.
The Concrete Floor Grinding Polishing Machine is designed to provide high-precision grinding and polishing on concrete surfaces. It is equipped with a powerful motor for maximum grinding performance and a dust collection system for improved air quality. It is ideal for grinding and polishing concrete floors, edges, and corners for professional results.
The Concrete Floor Grinding Polishing Machine is designed for easy operation and maintenance with its simple user interface and intuitive controls. It is an ideal choice for those who are looking for a reliable and efficient machine for grinding and polishing concrete surfaces.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 |
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) | |||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||
The YAMU YM-320B Hand push Semi-automatic Edge Concrete Floor Grinder Polishing Machine is a powerful grinding machine that is designed to deliver high operating efficiency and superior dust collection capabilities. It has been certified with ISO9001 certification, and comes with a Negotiable Price, and a Wooden Case for packaging. It is a high-performance device that can be delivered within 7 Days, and payments must be made via T/T. It has a Supply Ability of 10000PCS each month, and is designed with a Dust Collection feature. It is available in three attractive colors - Orange, White, Red - and is equipped with 3 Grinding Heads and a 3.7KW Power. It also provides high operating efficiency, which makes it a Unique Selling Point.
Special Features: Edge Concrete Floor Grinder Polishing Machine, Floor Driving Grinding Machine, Hand push Semi-automatic concrete grinding machine.
