| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320B |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| Grinding Width: | 300MM | Grinding Head QUANTITY: | 3 |
|---|---|---|---|
| NET WEIGHT: | 110kg | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, |
| Rated Voltage: | 380V | Name: | Concrete Double Power Trowel |
| UNIQUE SELLING POINT: | High Operating Efficiency | Dust Collection Efficiency: | 99% |
| High Light: | Concrete Floor Grinder Polishing Machine,Concrete Floor Grinding Machine 850rpm |
||

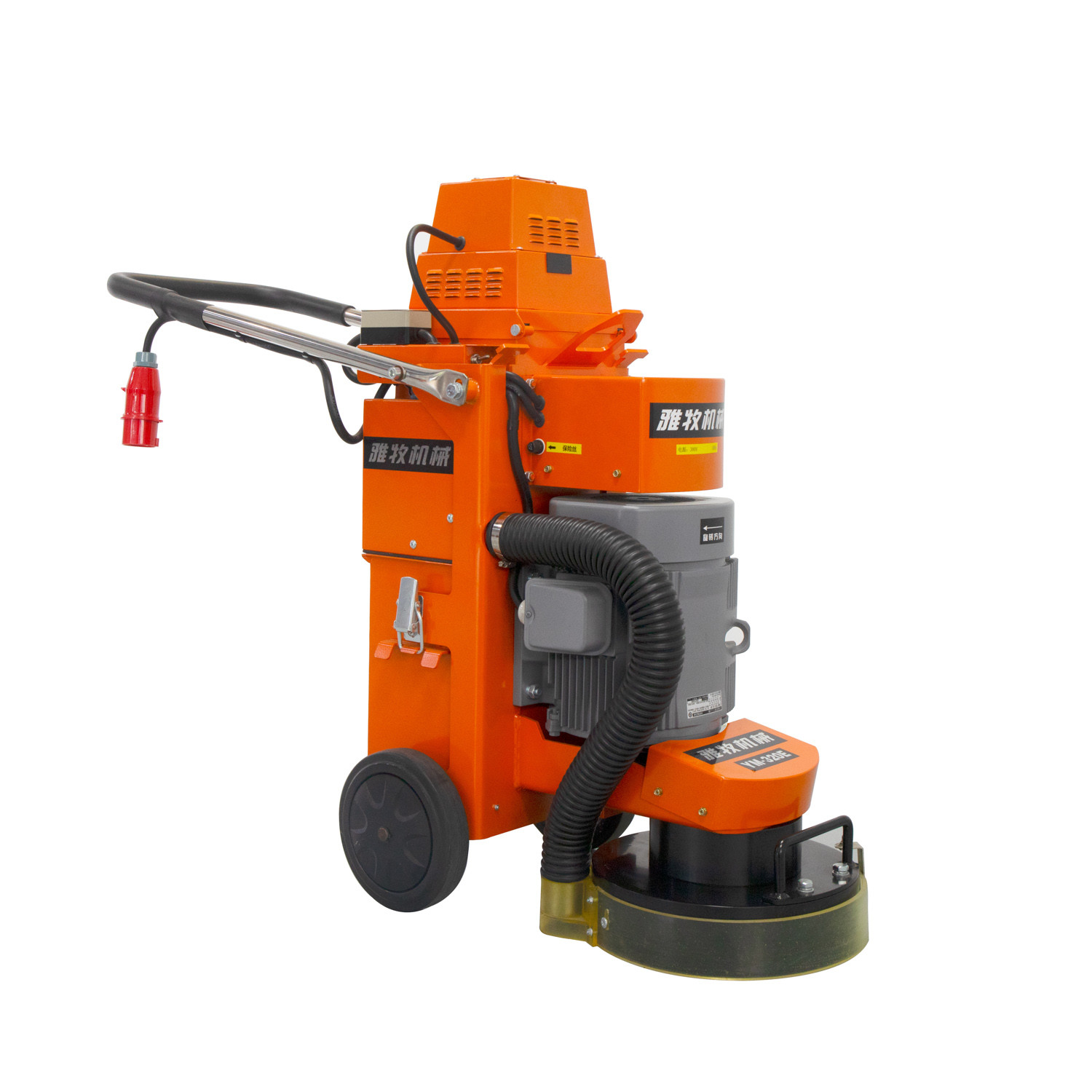

Concrete Floor Grinder Machine with Toshiba Japan Motor and 99% Dust Collection Efficiency
The Terrazzo Marble Epoxy Stone concrete Floor Grinders Floor Driving Grinding Machine is a highly efficient grinding machine with a Toshiba Japan motor and 3.7kw rated power. It features a PLC, engine, bearing, gearbox, and motor as its core components. This machine's unique selling point lies in its high operating efficiency, making it the ideal choice for grinding concrete floors. With an input voltage of 380V, this Floor Driving Grinding Machine can easily and quickly grind terrazzo, marble, epoxy and stone floors.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 |
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) | |||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||
The YAMU YM-320B Hand push Semi-automatic concrete grinding machine is a powerful, efficient and versatile Concrete Floor Grinding polishing Machine designed for professional use. YAMU has been certified by ISO9001, and this Floor Driving Grinding Machine is a must-have for any construction site. It is equipped with a PLC, engine, bearing, gearbox, motor and dust collection system, which ensure the highest level of efficiency and performance for the grinding job. With its 0-850 RPM working speed and a net weight of 110Kg, the YAMU YM-320B is capable of delivering a high-quality end result within a short amount of time. The dust collection system is designed to capture 99% of dust, ensuring a clean and safe working environment.
YAMU YM-320B Edge Concrete Floor Driving Grinding Machine is the perfect solution for grinding and polishing floor. It is equipped with PLC, engine, bearing, gearbox, motor, and other core components, and made of alloy material. It has a power of 3.7kw and 20m power cord (2.5mm²*4core). The length of the power cord supports long-distance operation. The color of the machine is available in orange, white and red. It is certified by ISO9001 and has a minimum order quantity of 1PCS.
YAMU YM-320B Edge Concrete Floor Driving Grinding Machine is widely used in industrial and commercial applications, such as floor polishing, floor grinding, and more. With its ability to provide high-quality results, this machine is a great choice for any floor grinding needs. Our experienced team is also ready to provide you with any customization services you may require.
