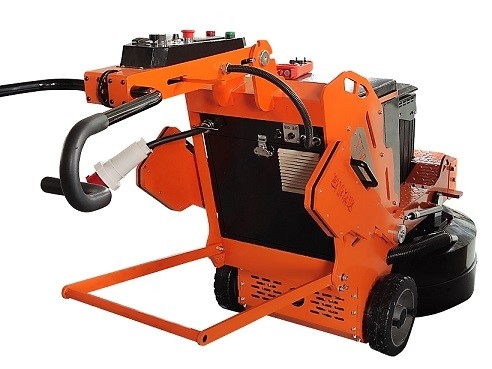

380V 3Phase Diamond Concrete Polishing Machine Double Drive System

Basic Information
Place of Origin: China
Brand Name: YAMU
Certification: ISO9001
Model Number: YM-850
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 10000PCS each month
Water Tank Volume: 40L Phase: 3Phrase
Grinding Disc Material: Diamond Dimension(L*W*H): 1500*980*1100mm
Driving System: Double-drive Voltage: 380V
Disc Quantity: 12pcs Working Width: 850MM
High Light:

Double Drive System Concrete Grinder Polisher

,

3Phase Diamond Concrete Polishing Machine

,

380v Concrete Polishing Equipment



380V 3Phase Diamond Concrete Polishing Machine

Product Description:

The Concrete Floor Polishing Machine is a dust-free cement floor concrete polishing machine designed for terrazzo marble concrete polishing. It is equipped with a 50/60 Hz 3-phase power system, and is certified by CE. It features wireless remote control and weighs 750 kg, making it suitable for large-scale construction projects.

This concrete polishing machine is designed to provide a dust-free, smooth and glossy finish without any manual labor. It is easy to operate and can be used to polish different kinds of concrete surfaces, including marble, terrazzo, and other cement surfaces. With its high power and efficient performance, it can polish up to 8,000 square feet per hour, making it suitable for large-scale construction projects.

The Concrete Floor Polishing Machine is a perfect choice for construction sites and factories. It is designed to reduce maintenance costs and improve productivity while ensuring a dust-free, smooth and glossy finish. Its cutting-edge technology and reliable performance make it an ideal choice for any type of concrete polishing project.



Features:

  • Product Name: Concrete Floor Polishing Machine
  • Disc quantity: 12pcs
  • Voltage: 380V
  • Grinding Disc Material: Diamond
  • Water Tank Volume: 40L
  • Weight: 750kg
  • Ideal for epoxy floor polishing concrete grinding machine
  • High performance for epoxy floor polishing concrete grinding machine
  • Stable operation for epoxy floor polishing concrete grinding machine


Technical Parameters:

Mode YM-630 YM-700 YM-750BP YM-850
Work Diameter 620mm 680mm 740mm 850mm
Voltage 380v 380v 380v 380v
Phase 3 phase 3 phase 3 phase 3 phase
Power 7.5KW (10Hp) 18.5KW (25Hp) 18.5KW (25Hp) 18.5kw servo motor
Frequency Converter 7.5KW (10Hp) 18.5KW (25Hp) 18.5KW (25Hp) 18.5KW (25Hp)
Disc Quantity 12 12 12 12
Rotating Speed 300-1800rpm 300-2400rpm 1400-2800rpm 0-2800rpm
Water Tank Capacity 60L 80L 80L 80L
Weight 305kg 395kg 430kg 750kg
Pack Size 1200*800*1200mm 1200*850*1300mm 1350*850*1300mm 2020*1120*1900mm
380V 3Phase Diamond Concrete Polishing Machine Double Drive System 0



380V 3Phase Diamond Concrete Polishing Machine Double Drive System 1380V 3Phase Diamond Concrete Polishing Machine Double Drive System 2380V 3Phase Diamond Concrete Polishing Machine Double Drive System 3380V 3Phase Diamond Concrete Polishing Machine Double Drive System 4

Applications:

YAMU's Walk Behind Planetary Concrete Floor Polishing Machine (Model Number: YM-850) is the perfect solution for a clean, dust-free, and smooth polishing of concrete and epoxy floors. With its 50HZ/60HZ frequency and 1500*980*1100mm dimension, this machine can process a wide area with its 850mm working width. It can easily remove the old paint, wax, glue, dirt and epoxy resin on the concrete surface, leaving a smooth and shining surface.

The machine is CE certified, and its Minimum Order Quantity is 1PCS. It is available at a Negotiable Price and comes packaged in a Wooden Case. Delivery Time is 7 days, and Supply Ability is 10000PCS each month. Payment Terms is T/T.

In summary, YAMU's Walk Behind Planetary Concrete Floor Polishing Machine is a great choice for concrete and epoxy floor polishing, grinding, and dust-free cleaning. It is easy to use, highly efficient, and provides excellent results.



Customization:

YAMU YM-850 380V Concrete Floor Polishing Machine

Features:
Dust Free Cement Floor Concrete Polishing Machine
Concrete Polishing Machine Terrazzo Marble Concrete Polisher
Brand Name: YAMU
Model Number: YM-850
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 10000PCS each month
Phase: 3Phrase
Disc quantity: 12pcs
Grinding Disc Material: Diamond
Frequency: 50HZ/60HZ



Support and Services:

Technical Support and Service for Concrete Floor Polishing Machine

We provide professional technical support and service for our Concrete Floor Polishing Machine. We have highly experienced technical staff who are available to answer any questions you may have. Our technical support includes over-the-phone troubleshooting and on-site support. We also provide regular maintenance and repair services for our equipment. We guarantee that our technicians will be on-site within 48 hours of your call.

We also provide a range of spare parts and accessories for our Concrete Floor Polishing Machine. Our genuine spare parts are available for purchase, as well as our selection of aftermarket components. All spare parts and accessories come with a 12-month warranty.

We are committed to providing excellent customer service and technical support. If you have any questions or need assistance with your Concrete Floor Polishing Machine, please don't hesitate to contact us.
