| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320V |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| MOTOR TYPE: | Toshiba Japan | START MODE: | ELECTRIC START |
|---|---|---|---|
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, | Material: | Alloy |
| Length Of Power Cord（m）: | 20m（2mm²*4core） | Phase: | 1 Phase |
| UNIQUE SELLING POINT: | High Operating Efficiency | NET WEIGHT: | 110kg |
| High Light: | 20m Concrete Floor Grinding Machine,220V Concrete Grinding Equipment,Alloy Concrete Floor Grinding Polishing Machine |
||
Toshiba Japan Concrete Floor Grinding Machine High Operating Efficiency
The Concrete Floor Grinding Machine is an ideal choice for terrazzo, marble, epoxy, stone and concrete floors. It is equipped with three grinding heads and a 3.7kw Toshiba Japan motor to ensure high operating efficiency. It features a 1-phase grinding head, making it an ideal choice for those that require a powerful and reliable floor driving grinding machine. This floor grinding machine allows anyone to easily achieve an excellent grinding and polishing result with its unique selling point of high operating efficiency. With a wide range of applications, it is perfect for grinding and polishing concrete, marble, epoxy and stone floors. The Concrete Floor Grinding Machine is an ideal choice for anyone looking for a powerful and reliable floor driving grinding machine.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) |
1200 * 400 * 896
|
1200 * 400 * 896
|
1200 * 400 * 896
|
1200 * 400 * 896
|
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores or 4mm ²* 4cores ) | |||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||

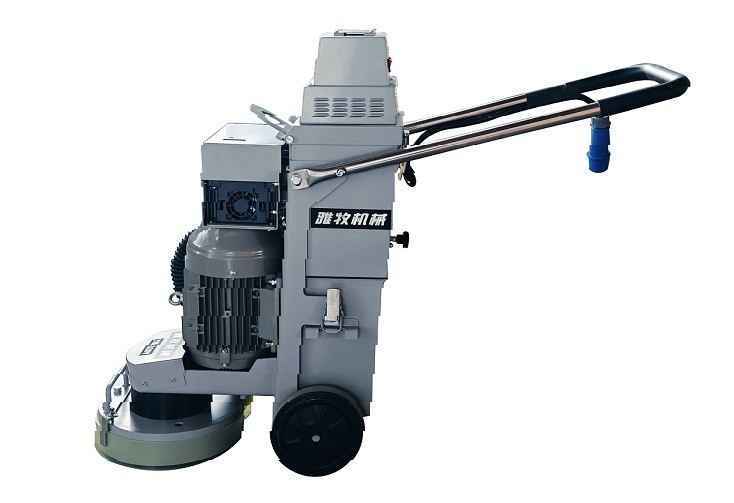

YAMU YM-320V is a hand-push semi-automatic concrete grinding and polishing machine certified by ISO9001. It is equipped with a strong and durable motor of Toshiba Japan, which can ensure powerful grinding and polishing and provide a stable and efficient operation. The material of this machine is made of alloy, which is wear-resistant and corrosion-resistant. It can provide a grinding width of 300MM, and its dust collection efficiency can reach up to 99%.
The minimum order quantity is 1PCS, and the price is negotiable. It usually takes 7days for delivery. Its payment terms are T/T, and the supply ability can reach up to 10000PCS each month. The packaging details are wooden case, which can protect the machine from any damage during transportation.
