| Place of Origin: | China |
|---|---|
| Brand Name: | YAMU |
| Certification: | ISO9001 |
| Model Number: | YM-320V |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS each month |
| START MODE: | ELECTRIC START | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, |
|---|---|---|---|
| Name: | Concrete Double Power Trowel | WORKING SPEED: | 0-850RPM |
| POWER: | 3.7kw | Length Of Power Cord（m）: | 20m（2mm²*4core） |
| Rated Voltage: | 220V | Dust Collection: | Yes |
| High Light: | 320MM Concrete Floor Grinding Polishing Machine,Double Power Trowel Concrete Polisher Grinder,PLC Floor Grinding Polishing Machine |
||

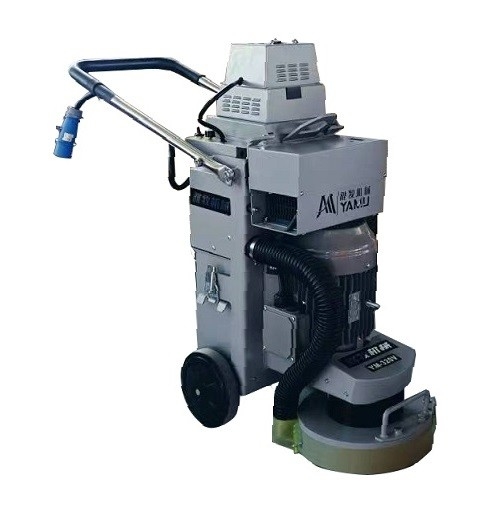

320MM Concrete Floor Grinding Polishing Machine with 99% Dust Collection Efficiency
The Concrete Floor Grinding Machine is a powerful and efficient equipment designed to meet the needs of professional construction workers. It is capable of working on any type of concrete, marble, terrazzo, epoxy, and stone flooring surfaces. This machine is designed for hand push and semi-automatic operation, making it easy to operate. It has a powerful 3.7KW motor and a working speed of 0-850RPM, ensuring a high operating efficiency. With a grinding width of 300MM, it is suitable for a wide variety of floor grinding applications. The unique selling point is its ability to achieve a high level of precise grinding for producing a smooth finish on the concrete floor. The Concrete Floor Grinding Machine is great for polishing edges and corners of concrete floors. It is a perfect choice for contractors, professionals, and DIYers.
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | 3.7KW (5Hp) | |||
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) |
1200 * 400 * 896
|
1200 * 400 * 896
|
1200 * 400 * 896
|
1200 * 400 * 896
|
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores or 4mm ²* 4cores ) | |||
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders | |||
YAMU YM-320V Hand Push Semi-automatic Concrete Grinding Machine is a powerful and efficient concrete floor grinding polishing machine. It is certified by ISO9001 and has a minimum order quantity of 1PCS. The price is negotiable and the packaging is done in a wooden case and the delivery time is 7days. Payment terms are T/T and there is a supply ability of 10000PCS each month. The rated voltage is 220V and the name of the machine is Concrete Double Power Trowel. The net weight of the machine is 110kg and it comes with three grinding heads with a grinding width of 300MM. This product is perfect for edge concrete floor grinding and polishing.
Welcome to YAMU, your trusted provider of Concrete Floor Grinding Machines. Our YM-320V model is designed to provide you with the best performance for all your floor grinding needs. It is certified to ISO9001 and comes with a minimum order quantity of 1PCS. The price is subject to negotiation and it will be packed in a wooden case for delivery. We can deliver within 7 days and accept payment by T/T. Our production capacity is 10000PCS each month. The core components are PLC, Engine, Bearing, Gearbox, Motor, and the power cord is 20m (2mm²*4core). The material used is alloy and the start mode is electric start. The dust collection efficiency is 99%.
If you are looking for Concrete Floor Grinding polishing Machine, Floor Driving Grinding Machine, or Edge Concrete Floor Grinder Polishing Machine, YAMU is your top choice. Look no further, contact us today to get the best deal.
