Bead Distribution And Durable Thermoplastic Spray Road Marking Machine 10 - 45cm Width

Basic Information
Place of Origin: China
Brand Name: YAMU
Certification: ISO9001
Model Number: LP-302
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 1000PCS each month
Working Speed: ≤1000m/h Marking Thickness: 1-2.5mm
Micro Bead Distribution: 20-30g/min Paint Material: Thermoplastic Paint Material
Marking Speed: 1.5km/Hrs Painting System: Spray Gun
Marking Width: 10-45cm Paint Barrels: Double Stainless Steel Heating Insulation Barrels
High Light:

Bead Distribution Spray Road Marking Machine

,

Thermoplastic Spray Road Marking Machine

,

Hot Thermoplastic Road Line Marking Machine

Bead Distribution and Durable Thermoplastic Spray Road Marking Machine

Product Description:

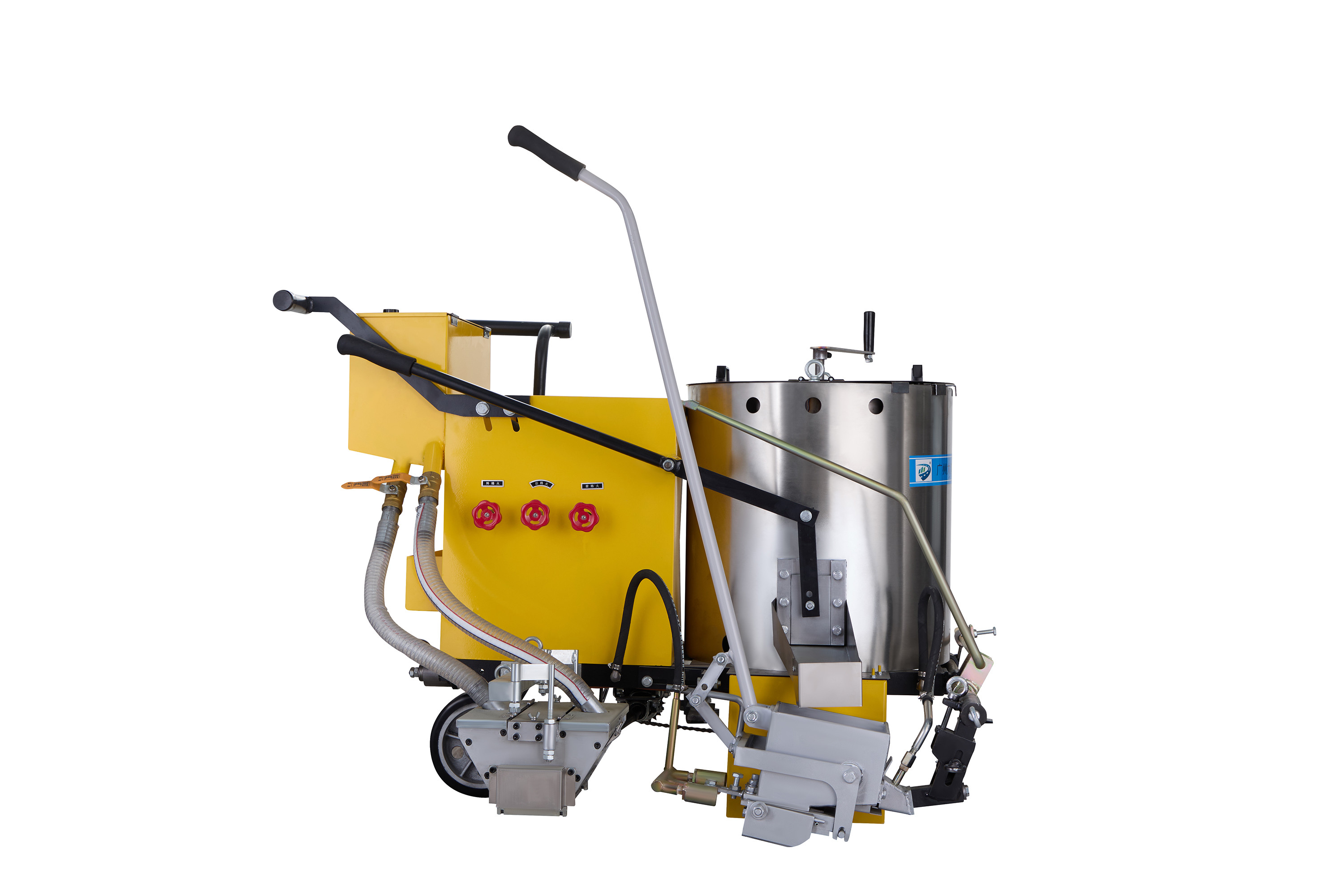

The Hot Thermoplastic Road Marking Machine is a self-propelled thermoplastic road marking machine which uses liquefied petroleum gas for heating. It is suitable for both new and existing road markings. The machine is capable of spraying a thermoplastic material to a thickness of 1-2.5mm and a width of 10-45cm. The dimension of the machine is 1.2m*0.9m*0.98m, and it can be operated both manually and automatically. It is ideal for use on highways, roads, and parking lots. Moreover, it is easy to operate and maintain, and the high-quality materials used in the construction ensure a long-term service life.

The Hot Thermoplastic Road Marking Machine features a thermoplastic spraying system, and it is also equipped with a hand-push system for easy operation. It is designed to provide an even coating with accurate thickness and width. The machine can also be used for the re-marking of existing roads, and it can be adjusted to provide a variety of line marking widths. The machine is equipped with an effective heating system that ensures the thermoplastic material is heated to the correct temperature for optimum performance. The liquefied petroleum gas heating method ensures that the machine is both economical and energy-efficient.

The Hot Thermoplastic Road Marking Machine is an ideal solution for all your road marking needs. It is designed for maximum efficiency and safety, and it is easy to operate and maintain. With its reliable performance and long-term service life, the Hot Thermoplastic Road Marking Machine is the perfect choice for road marking professionals.



Features:

  • Product Name: Hot Thermoplastic Road Marking Machine
  • Working speed: ≤1000m/h
  • Painting System: Spray Gun
  • Synchronous Clutch Spread With Speed Gearshift Device: Synchronous Clutch Spread With Speed Gearshift Device
  • Coating Capacity: 100kg
  • Marking Width: 10-45cm
  • Hand Push Thermoplastic Road Marking Machine: Hand Push Thermoplastic Road Marking Machine
  • Self-Propelled Thermoplastic Road Marking Machine: Self-Propelled Thermoplastic Road Marking Machine
  • Hand Push Thermoplastic Road Marking Machine: Hand Push Thermoplastic Road Marking Machine
  • Spray Gun: Spray Gun
  • Synchronous Clutch Spread: Synchronous Clutch Spread
  • Speed Gearshift Device: Speed Gearshift Device
  • Coating Capacity: Coating Capacity


Technical Parameters:

Type
CWL380
Thermoplastic Tank
Double stainless steel heating insulation barrels , capacity 100kg, plug-in manually mixer devices , removable devices
Glass Bead Container
100KG /Box
Adjustable Glass Beads Dispenser
Glass Beads Dispenser for dispensing glass beads synchronously and quantitatively . makes the dispensing synchronization with the marking line and ensures the quantity of the dispensing is controllable and adjustable , the dispense width of this dispenser is adjustable 50mm to 200mm
Marking Requipment
150mm marking shoe (High-precision ultra-thin material manufacturing, scraper- type structure)
Knife Underframe The Thickness of the scope marking
Carbide ,with eccentric sleeve device can adjustable the 1-2.5mm
Tire
Alloy Wheel, a special heat-resistant rubber
Rear Wheel Directional Device
Ensure the machine moving in straight line or turning freely in curved road
Heating Method
Liquefied Petroleum Gas
Hopper Marking width
100mm, 150mm , 200mm, 250mm, 300mm, 400mm, 450mm, (at customers' Option)
Dimesions
1200MM*900MM*950MM
Weight
100KG

Bead Distribution And Durable Thermoplastic Spray Road Marking Machine 10 - 45cm Width 0

Applications:

The YAMU LP-302 Hot Thermoplastic Road Marking Machine is a self-propelled thermoplastic road marking machine with hot melt capability. It is specifically designed for marking roads, highways, and other surfaces. The machine is ISO9001 certified and comes with double stainless steel heating insulation barrels and a coating capacity of 100kg. It can work at a speed of ≤1000m/h and has a micro bead distribution of 20-30g/min. It is a high-quality machine with a minimum order quantity of 1PCS. The price is negotiable and the delivery time is 7 days with wooden case packaging. The supply ability is 1000PCS each month.

The YAMU LP-302 Hot Thermoplastic Road Marking Machine is ideal for marking roads, highways, and other surfaces. It is a perfect choice for contractors, municipalities, and other professionals who need to mark roads, highways, and other surfaces with hot melt materials. It is also suitable for use in airports, highways, car parks, and other areas that require precision and accuracy. With its fast speed and high-quality performance, it is an ideal choice for those who need to mark roads quickly and accurately.

The YAMU LP-302 Hot Thermoplastic Road Marking Machine is the perfect choice for those looking for a reliable and high-performance machine for marking roads, highways, and other surfaces. It is sturdy, reliable, and efficient, making it the ideal choice for professionals who need to mark roads quickly and accurately. It is a great choice for contractors, municipalities, and other professionals who need to mark roads, highways, and other surfaces with hot melt materials.



Customization:

We offer customized services for Hot Thermoplastic Road Marking Machine from YAMU with model number LP-302. This product is certified by ISO9001 and the minimum order quantity is 1PCS. The price is negotiable and it will be packaged in a wooden case for delivery in 7 days. The payment terms are T/T and the supply ability is 1000PCS each month. The weight of this product is 120kg and it is powered by gasoline. The marking width is 10-45cm and it features thermoplastic and hand-push. We also provide self-propelled thermoplastic road marking machine and hand push thermoplastic road marking machine.



Support and Services:

Hot Thermoplastic Road Marking Machine provides technical support and services, including:

  • Pre-sale technical support for customers
  • On-site installation and commissioning of machines
  • 24/7 online customer service
  • Customized spare parts for machines
  • Regular maintenance and repair services
